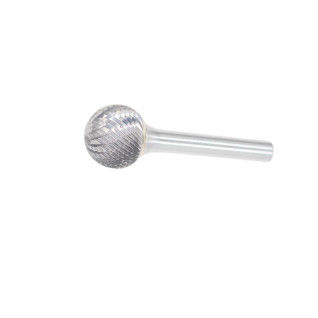

8mm Shank D-Ball Shape 22mm Cut Dia Carbide Burrs Double Cut Carbide Rotary Burr

Großes Bild : 8mm Shank D-Ball Shape 22mm Cut Dia Carbide Burrs Double Cut Carbide Rotary Burr

Produktdetails:

Place of Origin:	China
Markenname:	BABOS
Model Number:	SD-Ball Shape
Dokument:	BABOS CARBIDE BURR CATALOGU...UE.pdf

Zahlung und Versand AGB:

Minimum Order Quantity:	20pcs
Preis:	Verhandlungsfähig
Packaging Details:	Plastic Box
Delivery Time:	3 days for standard products, 1-2weeks for custom products.
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	10,0000pcs per month

Kontakt

Ausführliche Produkt-Beschreibung

Material:	Tungsten Carbide	Shape:	Ball Shape
Cut Diameter:	22mm	Cut Length:	20mm
Shank Diameter:	8mm	Overall Length:	65mm
Flute Type:	Standard Double Cut	Suitable For:	Machining Surface Profile of Workpiece
Application:	Deburring, Shaping, and Finishing	Package Quantity:	1 pcs
Max Rpm:	50,000

8mm Shank D-Ball Shape 22mm Cut Dia Carbide Burrs Double Cut Carbide Rotary Burr

The 8mm Shank D-Ball Shape 22mm Cut Dia Carbide Burrs Double Cut Carbide Rotary Burr is a specialized cutting tool designed for efficient material removal and shaping in various applications.

Ball Shape Carbide Burr On 8mm Shank

8mm Shank D-Ball Shape 22mm Cut Dia Carbide Burrs Double Cut Carbide Rotary Burr 0

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:22mm

Length of Flute: 20mm

Shank Diameter: 8mm

OAL: 65mm

Cut Type: Standard Double Cut

Other Available Sizes Related to Type D Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm)	Cutter Dia. (mm)	Length of Cut (mm)	Overall Length (mm)	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Tool No.	The Combination of Head and Shank
3	2	1.8	38	D0202	Solid
	2.5	2.3	38	D2525	Solid
	3	2.5	38	D0325	Solid
	4	3	41	D0403	Brazed
	5	4	42	D0504	Brazed
	6	5	43	D0605	Brazed
6	6	5	50	D0605	Brazed
	8	7	52	D0807	Brazed
	10	9	54	D1009	Brazed
	12	10	55	D1210	Brazed
	16	14	59	D1614	Brazed
	19	18	63	D1918	Brazed
	25	21	66	D2521	Brazed
8	12	10	56	D1210	Brazed
	16	14	59	D1614	Brazed
	19	18	63	D1918	Brazed
	25	21	66	D2520	Brazed
Inch Standard
1/8''	1/8"	1/8"	1-1/2"	SD-42	Solid
	3/16"	5/32"	1-1/2"	SD-53	Brazed
	1/4"	7/32"	1-3/4"	SD-51	Brazed
1/4''	3/16"	1/8"	2''	SD-14	Solid
	1/4"	7/32"	2''	SD-1	Solid
	5/16"	1/4"	2"	SD-2	Brazed
	7/16"	3/8"	2-1/7"	SD-4	Brazed
	1/2"	7/16"	2-1/5"	SD-5	Brazed
	5/8"	9/16"	2-1/3"	SD-6	Brazed
	3/4"	11/16"	2-4/9"	SD-7	Brazed
	1"	15/16"	2-7/8"	SD-9	Brazed

Customization:

Please send us the drawings or other important information if you need non-standard carbide burrs.
Please contact us if you need more information about type D burrs or other shapes of burrs.
OEM is avaliable.

Cut Selection Guide:

8mm Shank D-Ball Shape 22mm Cut Dia Carbide Burrs Double Cut Carbide Rotary Burr 1
